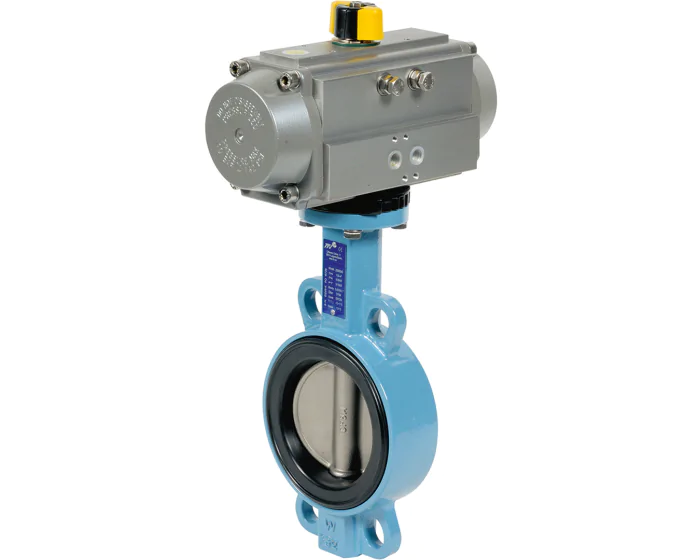

The 1141 NF GAZ butterfly valve has a ductile iron body, a stainless steel disc and an NBR seat. It is actuated with a double or single spring return pneumatic actuator from ALPHAIR.
| Specification | Value |
|---|---|
| Option certificate 3.1 | Yes |
| Maximum delta P (bar) | 10 |
| Operating angle (°) | 90 |
| Adjustable limit screws | Yes |
| DN | 32 - 40 |
| Seat | NBR - Gas |
| Body material | Ductile iron |
| ATEX protection mode | EEx c |
| Number of ways | 2 |
| Disc material | Stainless steel CF8M |
| PS (bar) | 16 |
| Connections | Between flanges PN10/16 #150 |
| Pneumatic actuator type | Double acting |
| Butterfly valve design | Concentric |
| Wafer/lug | Wafer |
| ATEX zone | 1.21.2.22 |
| CE | Risk category III |
| Range | TTV |
| Fire safe | No |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| Between flanges PN10/16 #150 Ductile iron Concentric Double acting 32 - 40 | 260593017006R | S1002481 |
€246.59
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric Spring return 32 - 40 | 260593017107R | S1002482 |
€294.90
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN50 - 2'' Double acting | 260594017006R | S1002483 |
€248.23
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN50 - 2'' Spring return | 260594017107R | S1002484 |
€297.01
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN65 - 2''1/2 Double acting | 260595017007R | S1002485 |
€278.39
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN65 - 2''1/2 Spring return | 260595017108R | S1002486 |
€357.69
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN80 - 3'' Double acting | 260596017007R | S1002487 |
€293.13
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN80 - 3'' Spring return | 260596017108R | S1002488 |
€371.99
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN100 - 4'' Double acting | 260597017008R | S1002489 |
€338.37
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN100 - 4'' Spring return | 260597017109R | S1002490 |
€426.16
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN125 - 5'' Double acting | 260598017008R | S1002491 |
€386.51
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN125 - 5'' Spring return | 260598017110R | S1002492 |
€546.53
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN150 - 6'' Double acting | 260599017009R | S1002493 |
€441.16
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN150 - 6'' Spring return | 260599017111R | S1002494 |
€692.51
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN200 - 8'' Double acting | 260600017010R | S1002495 |
€618.51
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN200 - 8'' Spring return | 260600017112R | S1002496 |
€878.00
(excl. btw)
|
add to cart |
